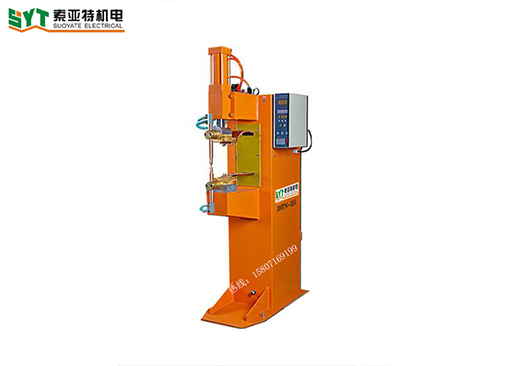

Pneumatic AC PulseSpot welding Series

交流脈沖式點焊機系列

WL-S-25/35/50k  KD5控制器

產品概述

該系列焊機利用普通市電，經過變壓器的作用，使電壓降低而電流加大。此種低電壓的大電流經電極送至工作件的結合部位，在接合處，由于工件間的電阻因素而產生高溫，金屬受此高溫產生高熱，使工件處于熔融狀態，從而達至兩工件熔接的目的。可焊接厚達10mm鐵及不銹等金屬，適合各類型五金制品。熔接電流強而有力，精確的電流控制，可控硅的導通角分成1000份調節，以配合不同厚度產品之焊接。采用數字集成電路控制，抗干擾能力強，工作穩定可靠?？刂齐娐穬?nèi)置來電電壓波動補償電路，能保證電源波動+15%范圍內及時作出電流補償，確保焊接電流穩定。

Description

Under the operation of transformer,pneumaticAC pulse spot welder utilizes the general mains supply to lower the voltage and increase the electric current.Such kind of low voltage but large current will be transmitted frm the electrode to the linked point of two work pieces.On the linkage,due to the resistance of work piece,high temperatue will occur so the metal will therefore generates high heat to make the work pieces in molten condition.Thus,the purpose of welding the two work pieces is achieved.lt can be used to weld 10mm of iron and metals like stainless steel.Applicable to all kinds of hardware.Powerful and strong welding current and precise current control.ln order to welding different thickness of products,conduction angle of silicon controlled rectifier is divided into 1000 parts for asjusting.Using digital integrated circuit control,strong anti-interference ability,stable and reliable work.Control circuit calls the built-in voltage fluctuation compensation circuit,which can guarantee the stable and reliable work.Control circuit calls the built-in voltage fluctuation compensation circuit,which can guarantee the power supply fluctuation within+15% range in a timely manner to make current compensation,ensure stable welding current.

性能特點

1.       特殊設計一體化加壓汽缸，確保加壓的穩定性和隨動性及焊接速度。

2.       多同路強制水冷卻系統，保證長期運行可靠性，穩定性。

3.       上下電極采用帶輔助行程的加壓方式，提高焊接時的可操作性、通用性。

4.       可任意調整加壓電極速度，減緩了對被焊接物體加壓時的沖擊，也減少了焊接時的噪聲。

5.       提高了焊接穩定性，對特殊材料可作預熱、整形、回火處理、避免因電流分流而造成的虛焊、脫焊。

WD-10AC控制器：數字電路、撥碼調節，單次放電，來電電壓波動時自動焊接電流補償，具有電流爬升功能，逐漸增加的電流可以十分有效抵制或減低火花的飛濺。

WD-KD5控制器：微電腦控制，多段放電，對特殊材料可作預熱、熔接、整形或回火處理，解決了多點凸焊中因電流分流而造成的虛焊、脫焊等缺陷，尤其對高碳鋼、特殊夾層金屬板也能焊接自如，可記憶15種焊接規范，來電電壓波動時自動焊接電流補償。

Features

1.       Special design integration of pressurized cylinder which can ensure stability and mobility of pressurized and welding speed.

2.       Multiple same ways forced water cooling system to ensure stability and reliability of long-term operation.

3.       Upper and lower electrode adopt supplementary stroke pressurized mode which can improve the operability of welding process.

4.       Pressurized electrode speed can be adjusted,slow down the impact to welding work piece when pressuring,also reduces the noise when welding.

5.       Lnrease welding stability.lt can be used to preheat,to weld,to reform or to temper for special materials;Solve the problems of void welding or loose welding due to current shunt during the process of multiple projection welding.WD-10AC Controller:Digital circuit;Codes dialing regulating;Single discharge;When the voltage of power supply is fluctuated,it can automatically compensate the current to weld;Possesses the function of current climbing and the gradually increased current can effectively curb or reduce the welding splash.

WD-KD5Controller:lntelligent microcomputer control;Multiple-section of discharge;it can be used to preheat,to weld,to reform or to temper for special materials;Solve the problems of void welding or loose welding due to current shunt during the process of muItipIe projection weIding;EspeciaIIy suitabIe for weIding high-carbon steeI or specaiIinterIayer of metaIpIate;Be abIe tomemorize 15types of weIding modeI;When the VoItage of power suppIy is fIuctuated,it can automaticaIIy compensate the current to weId.

適用范圍

適用于碳鋼板和不銹鋼板的點焊、凸焊。鐵線制品、五金燈飾、餐廚用具、汽車工業、小家電、小五金等。

Application

Suitable for spot welding or projection welding of steel plate and stainless steel sheet.lron wire products,hardware decorative lighting,kitchen utensils,automobile industry,small household appliances,small hardware,etc.
